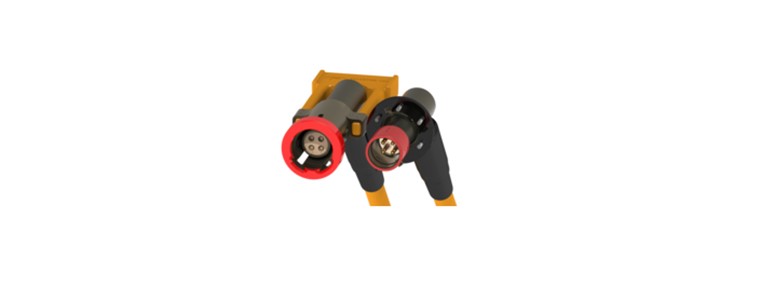

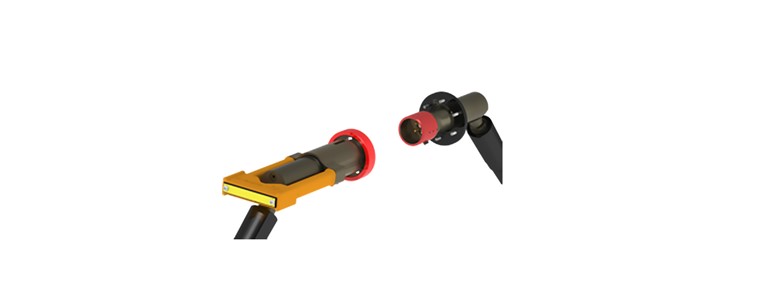

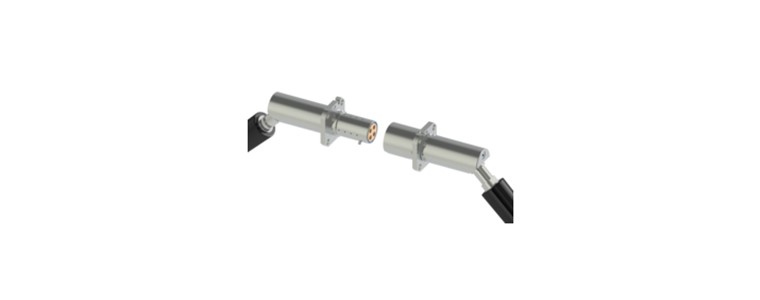

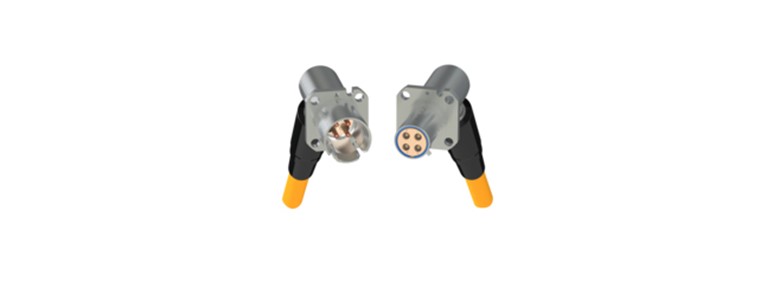

The Nautilus WM1.75-60 is a 4-way wet-mate electrical connector that offers a solution to subsea systems requiring higher continuous electrical current. The receptacle connectors feature pressure-balanced technology with environmentally-friendly compensating fluid, and are designed for high temperature use (up to 104°F). The 60-amp connector features the patented Nautilus design with dual independent seals and oil reservoirs. Each pin enters a reservoir via a shuttle pin and dual wiper seal assembly, designed to simultaneously clean and seal the pin from water or silt.

Key features

• 60 Amp Nautilus wet mate connector designed for applications with increased electrical current requirements
• 4-way ROV and Stabplate configurations available
• 1.0/1.7(2.0); 60A per pin
• Operational depth of 10,000 ft (3,000 m)
• 25 year design life​
