Hybrid Dry Mate Connector


Request a quote for: Hybrid Dry Mate Connector

Get your non-binding quote today and see how we can help.

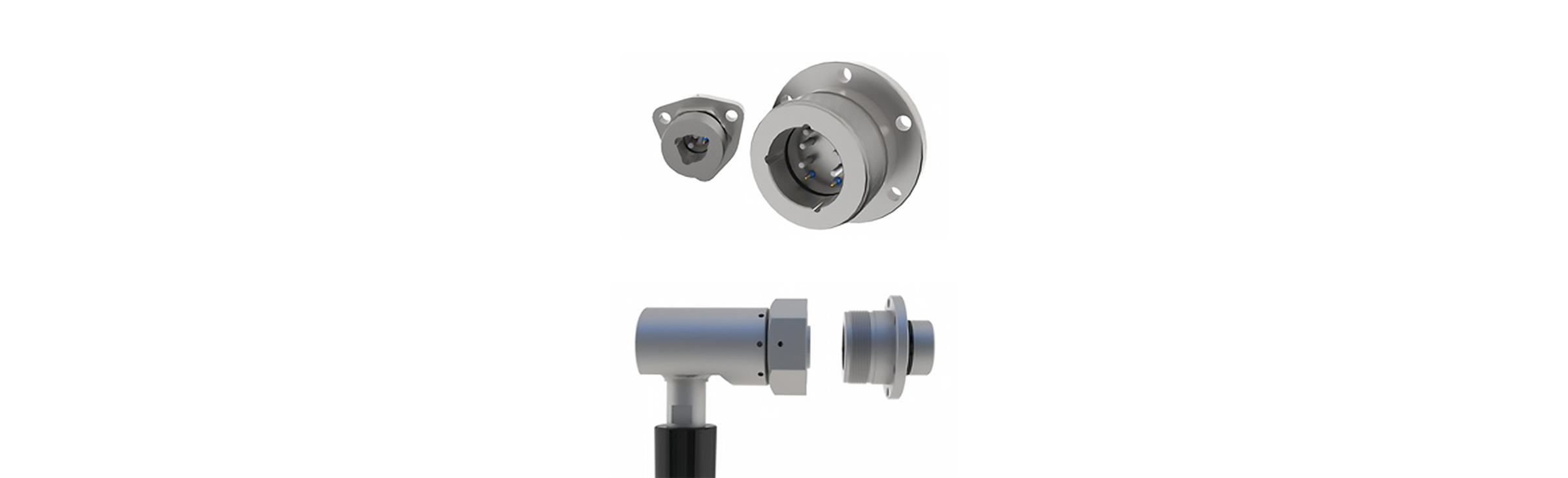

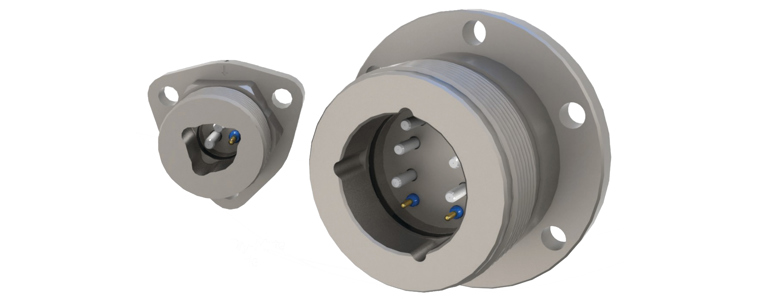

The Teledyne ODI Dry-Mate Submersible connector series is designed to directly complement the wet-mate hybrid connector series (Rolling Seal), and also for use as a stand-alone connection system. Two standard shell sizes are available, depending on the circuit configuration. In addition, straight, 45°, or 90° termination versions can be provided. Used in conjunction with Teledyne ODI's oil-filled hose, this system is designed for submersible applications up to 9,100 psi. A unique tri-lobe keying system assures proper alignment.


Key features

  • Robust, single piece precision-machined shell
  • Designed to accept a variety of electro-optical configurations
  • Watertight electrical connectors with 1-12 circuits
  • Miniature configuration with up to 3 circuits
