SubConn Low Profile series

Low Profile series offers connectivity for underwater systems and equipment where space is restricted or a more compact solution is required wet mate dry mate

Low-Profile- LP9M

Request a quote for: SubConn Low Profile series

Get your non-binding quote today and see how we can help.

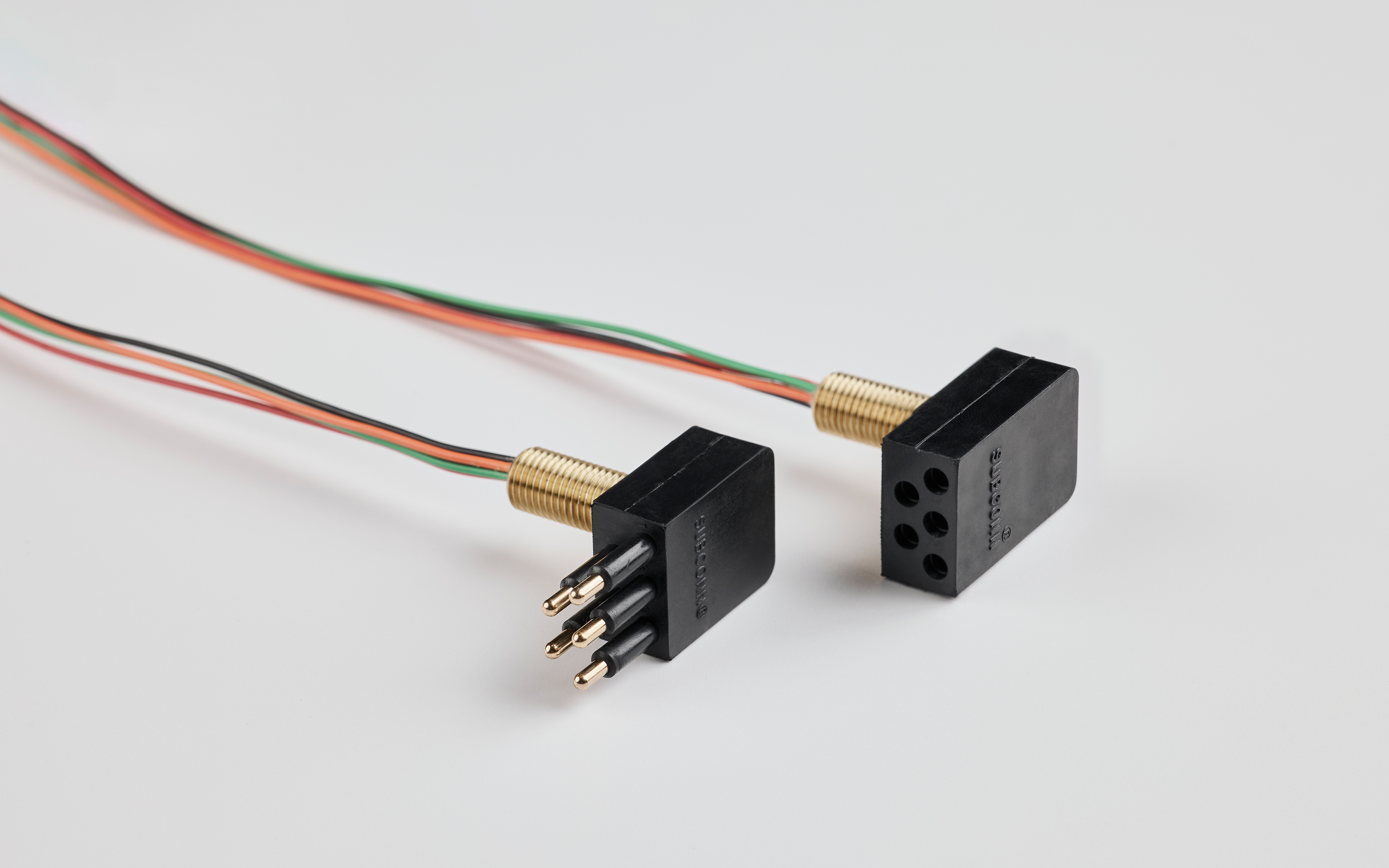

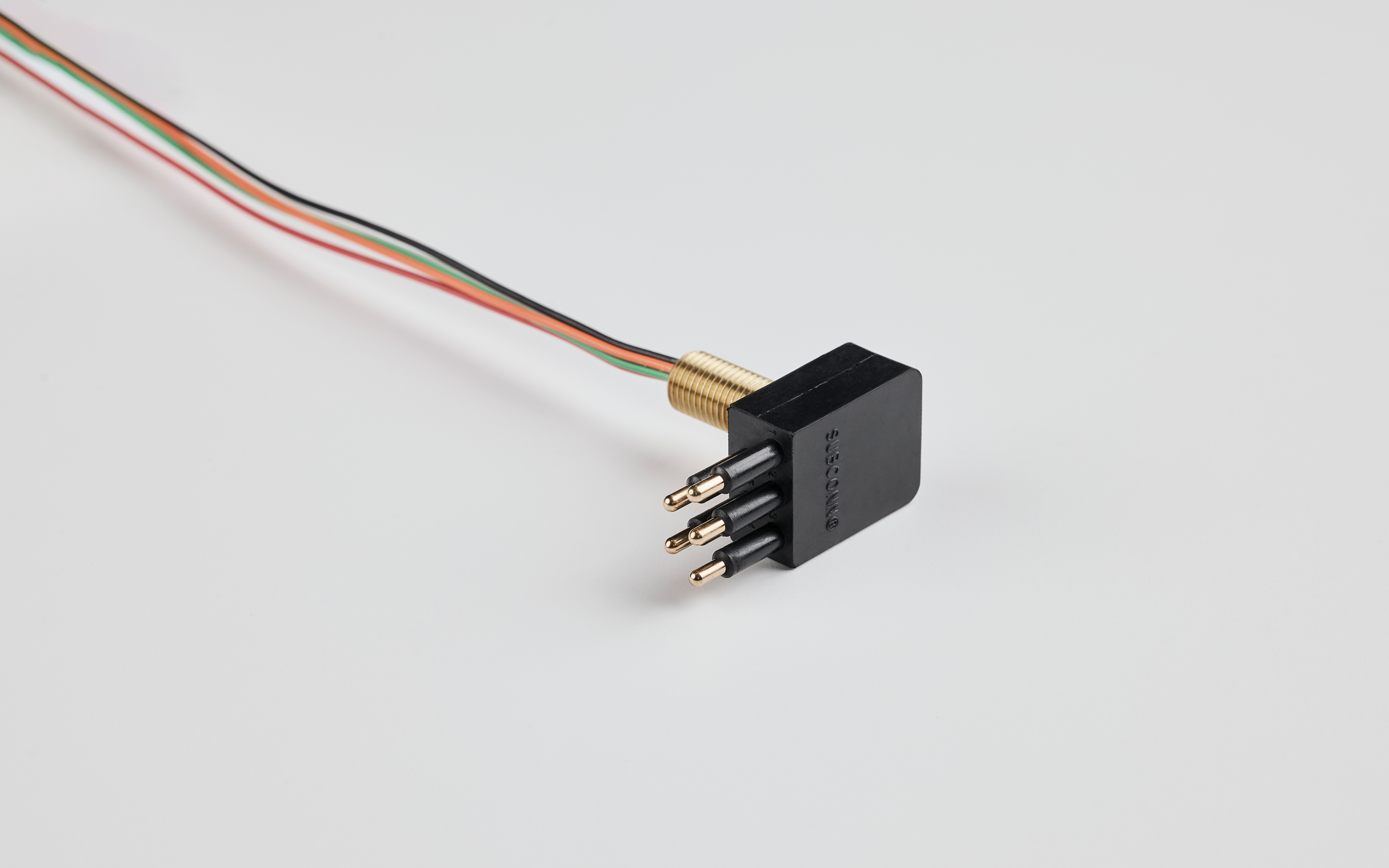

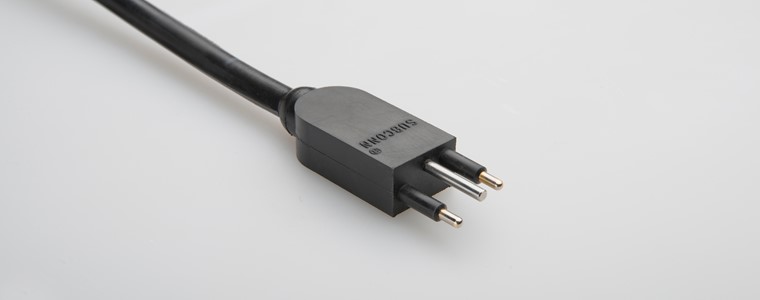

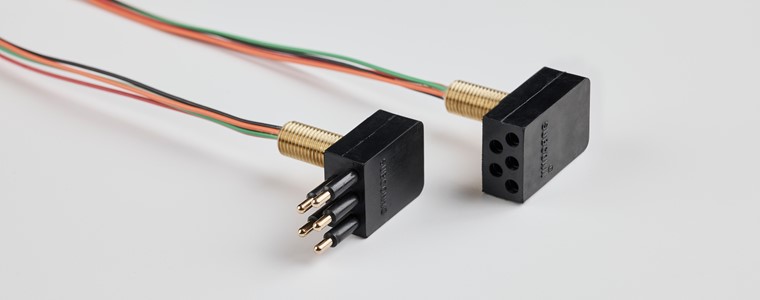

The SubConn® Low Profile series is designed to offer connectivity for underwater systems and equipment where space is restricted or a more compact solution is required. By means of the low profile layout users are able to assemble design optimised, streamlined and effective underwater systems with sensors, sonar heads and other types of equipment producing less drag.

SubConn® Low Profile connectors are manufactured from high-grade rubber with different types of body material available. They feature the same contact sizes as the Circular series and are available with 2 to 9 contacts rated at 600 V up to 10 A. The series includes bulkhead, inline and field installable overmould versions featuring a high depth rating.

For easy integration with systems and equipment SubConn® Low Profile series connectors are available with dedicated cables, rubber straps and pressure-proof dummy connectors. All SubConn® cables are manufactured from flexible and water-resistant synthetic


  • Remotely Operated Vehicle (ROV) systems and instrumentation bottles
  • Oceanographic systems, equipment and instrumentation solutions
  • Defence systems and equipment
  • Offshore oil and gas, renewable energy and subsea systems
  • Underwater camera, video and lighting systems
  • Diving systems and equipment


  • Customised harness cables and direct moulding to selected polyurethane (PUR) cables
  • Customer specified cable, wire leads and bulkhead thread lengths
  • Customer specified connector body material
  • Certified pressure testing to specific ocean depths

3D files

Please note that our 3D files are not 100 p.c. dimensionally stable.
If a 3D file is needed for tolerance issues, please contact MacArtney for more information.

Step files

X_B files
