Coax
| 50 Ω | 75 Ω | |
| Frequency range: | Up to 4 GHz | Up to 4 GHz |
| Coax cable: | RG58 (2550CC) | RG59 (2575CC) |
| Coax pigtail (standard): | RG174 w SMB | RG179 w SMB |
| Voltage rating on coax: | 600 V (pollution 2) | 600 V (pollution 2) |
Electrical
| 6 contacts | |
| Contact size: | 18 AWG |
| Contact size: | 0.8 mm2 |
| Voltage rating: | 250 VAC/VDC |
| Dielectric withstand: | 2,500 VAC |
| Current rating all contacts loaded: |
10 A |
Materials
- Housing*: Diamond polished AISI 316, Diamond polished Titanium G II
- Locking sleeves*: Diamond polished, Nickel Aluminium Bronze C63000, Diamond polished AISI 316, Diamond polished, Titanium G II
- Pressure cap*: Diamond polished AISI 316, Diamond polished Titanium G II
- Dust cap: POM
- Electrical insert: Glass reinforced high performance thermoplastic
- O-ring: FPM-75
*Other materials on request
Environmental
- Qualified pressure tested: Mated 720 bar/10,400 psi
- Depth rating: Mated 600 bar/8,700 psi
- Temperature rating:
Water: -4 to 70˚C/25 to 158˚F
Air: -25 to 70˚C/13 to 158˚F
Storage: -25 to 70˚C/13 to 158˚F
Standards
- Creepage distances and clearance: EN 60664-1, tables F2 and F4
- Electrical low voltage tests: EN 50393, table 5
Recommended cable
- Type 2550CC or 2575CC
Terminated by MacArtney only.

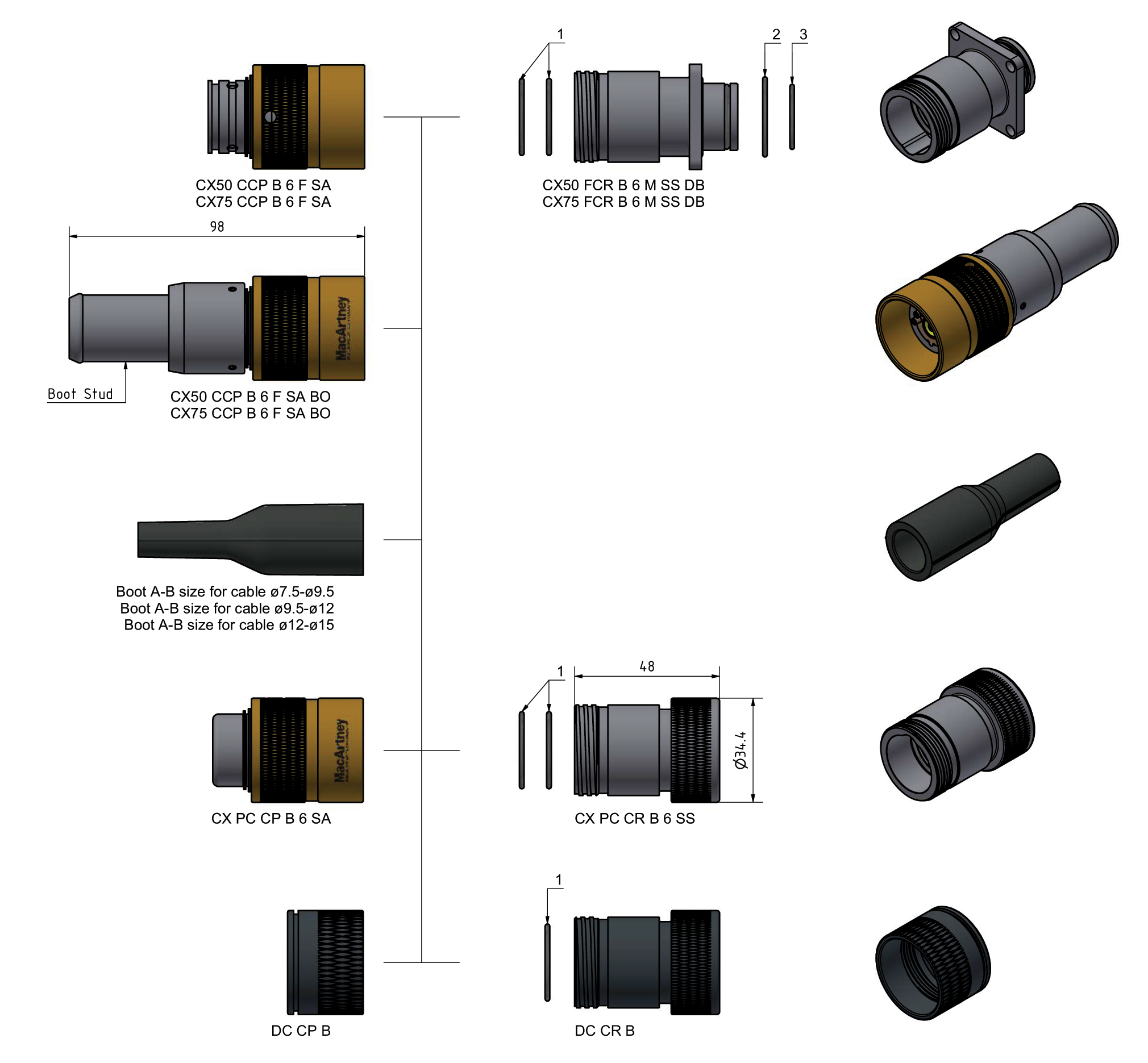

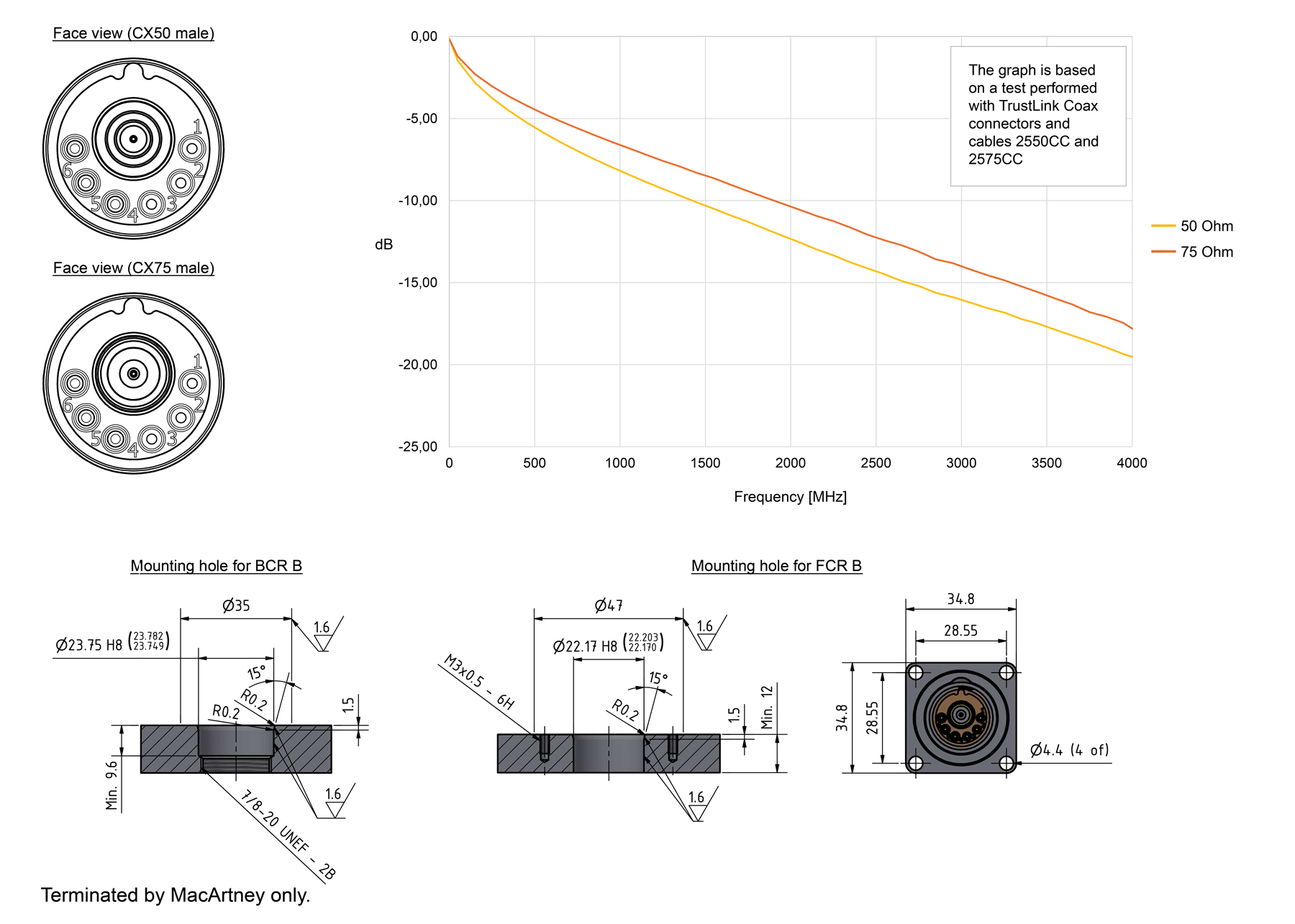

Face view (male)
3D files
Please note that our 3D files are not 100 p.c. dimensionally stable.
If a 3D file is needed for tolerance issues, please contact MacArtney for more information.
