SubConn Metal Shell 2400 - 6, 8 and 10 contacts

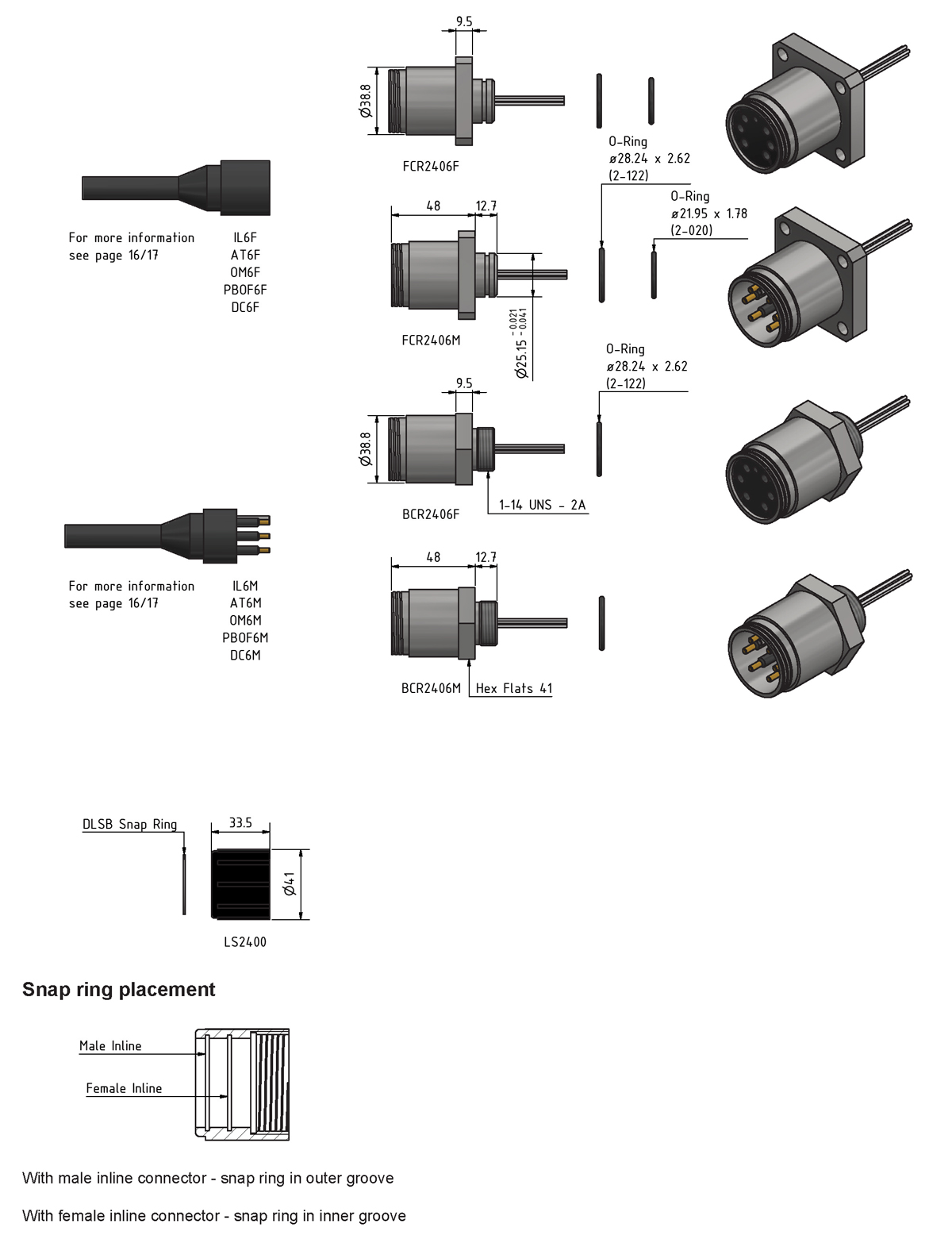

Drawing information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)



Connector specifications

Voltage rating: 600 V AC rms
DC rating: 85% of above AC rating
Current rating: 10 A per contact (max 50 A per connector)
Insulation resistance: > 200 Mohm
Contact resistance: < 0.01 ohm
Wet matings: > 500
Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
Depth rating: 700 bar, 10,000 psi



Material specifications

Connector body: Chloroprene rubber
Bulkhead body: AISI 316 (other materials on request)
Contacts: Brass UNS - C36000
Location pin: Stainless steel AISI 303
O-rings: Nitrile
Locking sleeves: POM
Snap rings: Stainless steel AISI 302
Bulkhead leads (30 cm, 1 ft): 18 AWG 0.82 mm2 tagged PTFE

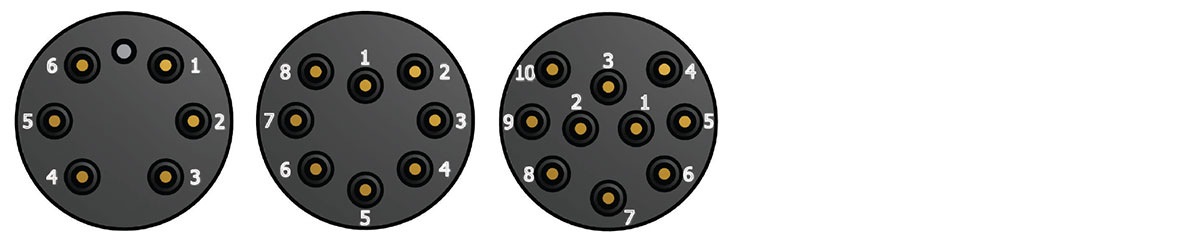

Face view (male)





3D files

Please note that our 3D files are not 100 p.c. dimensionally stable due to the fact that a SubConn® connector is mainly made from rubber which changes tolerances during curing.

If a 3D file is needed for tolerance issues, please contact MacArtney for more information.

Step files

X_B files
