SubConn Data Circular - 8 contacts
Request a quote for: SubConn Data Circular - 8 contacts
Get your non-binding quote today and see how we can help.

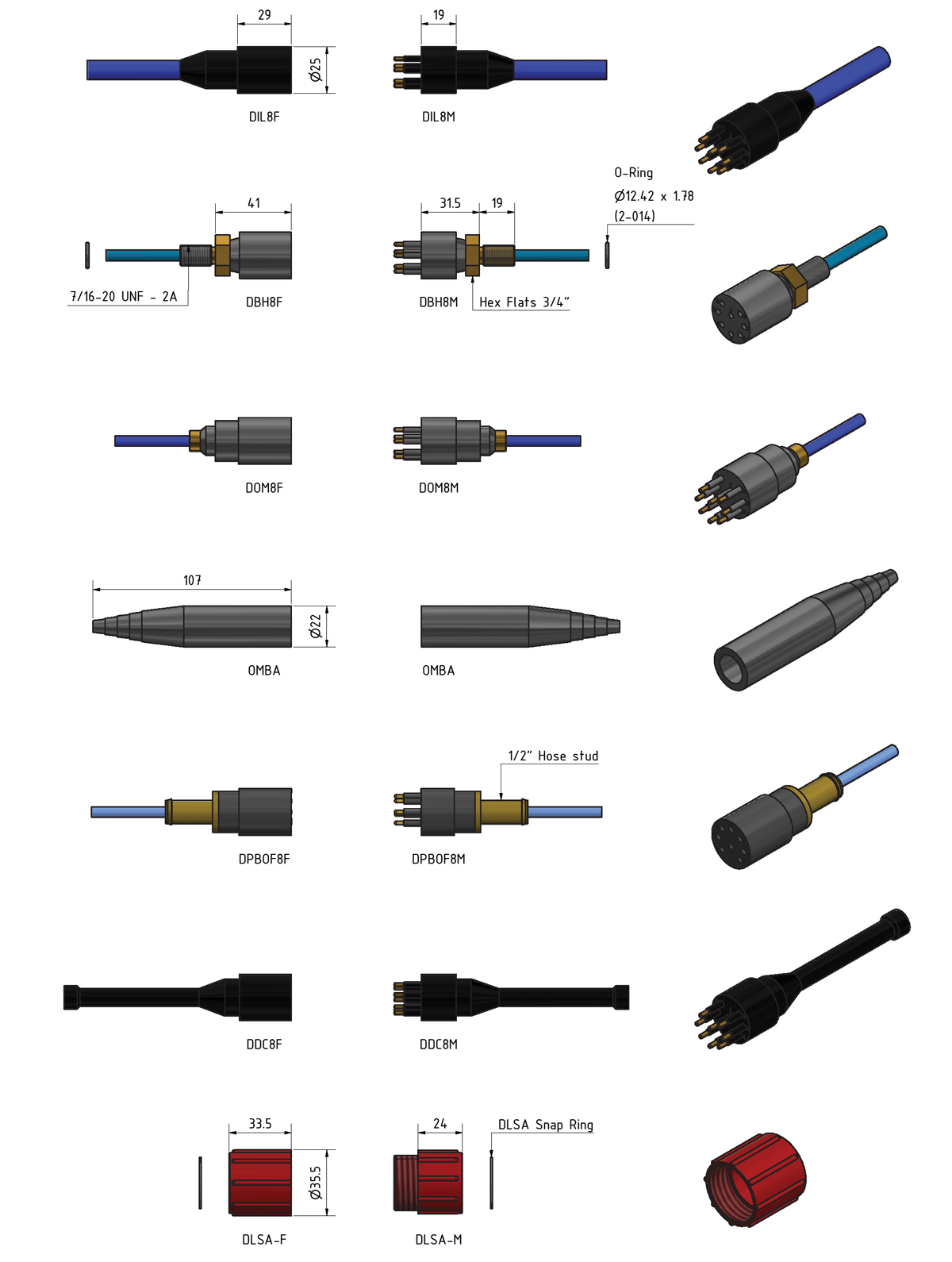

Drawing information
Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)
Connector specifications
Voltage rating: 250 V DC/AC rms
Data rate: 1 Gbit/s (up to 75 m)
Insulation resistance: > 200 MΩ
Contact resistance: < 0.01 Ω
Wet matings: > 500
Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
Qualified pressure tested: 600 bar, 8,700 psi (open face)
Depth rating PEEK: 300 bar, 4,350 psi
Material specifications
Connector body: Chloroprene rubber
Bulkhead body: Brass, stainless steel, titanium, anodised aluminium or PEEK
Bulkhead body (RA): Brass, stainless steel, titanium or anodised aluminium
Contacts: Female sockets in gold plated brass UNS - C36000, Male contacts in gold plated beryllium copper
O-rings: Nitrile
Locking sleeves: POM or stainless steel
Locking sleeves (RA): RADLSA-M (black POM)
Snap rings: Stainless steel AISI 302
Inline cable (3.3 ft, 100 cm): 4 pair 24 AWG, 0.20 mm2 PUR
Bulkhead and PBOF leads (3.3 ft, 100 cm): CAT 5E patch cable incl., RJ 45 connector incl. on bulkhead (not installed)
OM leads (3") , 7 cm: CAT 5E patch cable
Face view (male)
Inline cable colour code
1-2: Brown, Brown/white*
3-4: Blue, Blue/white*
5-6: Orange, Orange/white*
7-8: Green, Green/white*
* Twisted pairs
Additional information
Standard RJ45 cannot be mounted on inline cable and will require a RJ45 Phoenix connector or equivalent.
We recommend Sn96.5Ag3.0Cu0.5 SAC305 solder tin to be used when soldering the SubConn Data CAT 5E-Pigtails.
3D files
Please note that our 3D files are not 100 p.c. dimensionally stable.
If a 3D file is needed for tolerance issues, please contact MacArtney for more information.
3D files for download
All our 3D files are FREE of charge. Add multiple files to the file basket.
