SubConn HF Coax - 50 ohm Coax and Coax/Electric
Drawing information
Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)
Connector specifications
- Voltage rating on electric contacts: 300 V DC/AC rms
- Current rating on electric contacts: 5 A per contact (max 20 A per connector)
Voltage rating on coax insert only: 800 V, max nominal voltage acc. to MIL
Frequency*: 0.3 GHz / 0.6 GHz / 0.9 GHz / 1.2 GHz / 1.5 GHz / 1.8 GHz / 2.1 GHz / 2.4 GHz / 2.7 GHz / 3.0 GHz
Attenuation*: 5.0 dB / 7.7 dB / 9.9 dB / 11.6 dB / 13.4 dB / 15.3 dB / 17.3 dB / 19.3 dB / 21 dB / 22.5 dB
- Recommended max frequency: 3.0 GHz
- Insulation resistance: > 200 Mohm
- Contact resistance: < 0.01 ohm
- Wet matings: N/A (dry mating only)
- Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
- Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
- Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
- Qualified pressure tested: 600 bar, 8,700 psi
Material specifications
- Connector body: Chloroprene rubber
- Bulkhead body: Brass, stainless steel, titanium or anodised aluminium
- Power contacts: Female sockets in gold plated brass UNS - C36000, Male pins in gold plated beryllium copper
- Coax contacts: Gold plated contacts
- O-rings: Nitrile
- Locking sleeves: POM or stainless steel
- Snap rings: Stainless steel AISI 302
- Inline cable (2 ft, 60 cm): PUR jacket cable with RG58 coax or RG58 coax and 6 x 20 AWG, 0.52 mm2 conductors
- Coax bulkhead leads (3.3 ft, 100 cm): RG316 coax
- Coax and 6-contact bulkhead leads (3.3 ft, 100 cm): RG316 coax and 6 x 20 AWG, 0.52 mm2 coloured PTFE

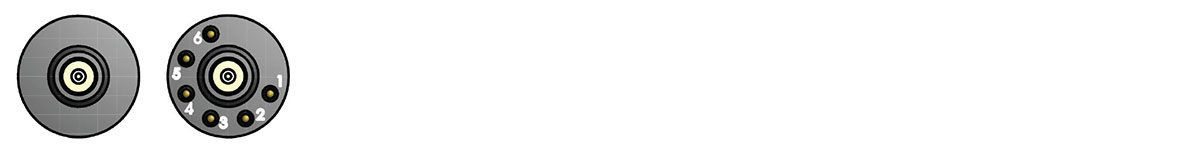

Face view (male)
Inline cable colour code
1: Black
2: White
3: Red
4: Green
5: Orange
6: Blue
Nominal cable outside diameter (OD)
RG58 PUR cable 0.220'', 5.59 mm
RG58 and 6-conductor PUR cable 0.382'', 9.70 mm
Additional information
*All frequency and attenuation values are based on a 10 meter cable assembly test including 2 bulkhead connectors (50 ohm).
BNC connector for RG316 coax leads use Amphenol 031-315-RFX or equivalent.
BNC connector for RG58 coax cable use Amphenol 112116 or equivalent.
SubConn® Coax connectors are dry mate only, and cannot take open face pressure.
Locking sleeves are required. No greasing in the actual coax part.
Minimum bending radius on inline cable is 100 mm.
Recommended SMB termination for Coax, see SubConn - Technical information.
3D files
Please note that our 3D files are not 100 p.c. dimensionally stable.
If a 3D file is needed for tolerance issues, please contact MacArtney for more information.
