TrustLink Hybrid
Power and optical communication in one compact solution for subsea systems
Request a quote for: TrustLink Hybrid
Get your non-binding quote today and see how we can help.
Electrical
| 4 contacts | |
| Contact size: | 2 x 16 AWG |
| Voltage rating: | 600 VAC/800 VDC |
| Current rating: | 13 A |
| Contact size: | 2 x 20 AWG |
| Voltage rating: | 250 VAC/350 VDC |
| Current rating: | 5 A |
| Current rating all contacts loaded: | 36 A |
Optical (single mode)
| Wavelength: | 1,310 to 1,550 nm |
| Attenuation: | Max 2.5 dB, Typical 1.0-1.5 dB (when mated) |
| Fibre types: | 9/125 μm |
| Optical passes: | 2 passes |
Optical (multi mode)
| Wavelength: | 850 to 1,300 nm |
| Attenuation: | Max 2.5 dB, Typical 1.0-1.5 dB (when mated) |
| Fibre types: | 50/125 μm |
| Optical passes: | 2 passes |
Materials
- Housing*: Diamond polished AISI 316
- Locking sleeves*: Diamond polished, Nickel Aluminium Bronze C63000
- Pressure cap*: Diamond polished AISI 316
- Dust cap: POM
- Insert: Stainless steel
- O-ring: FPM-75
*Other materials on request
Environmental
- Qualified pressure tested: Mated 720 bar/10,400 psi
- Depth rating: Mated 600 bar/8,700 psi (dry box)
- Temperature rating:
Water: -4 to 70˚C/25 to 158˚F
Air: -25 to 70˚C/13 to 158˚F
Storage: -25 to 70˚C/13 to 158˚F
Recommended cable
- Type 3644CC or 3780CC
Terminated by MacArtney only.

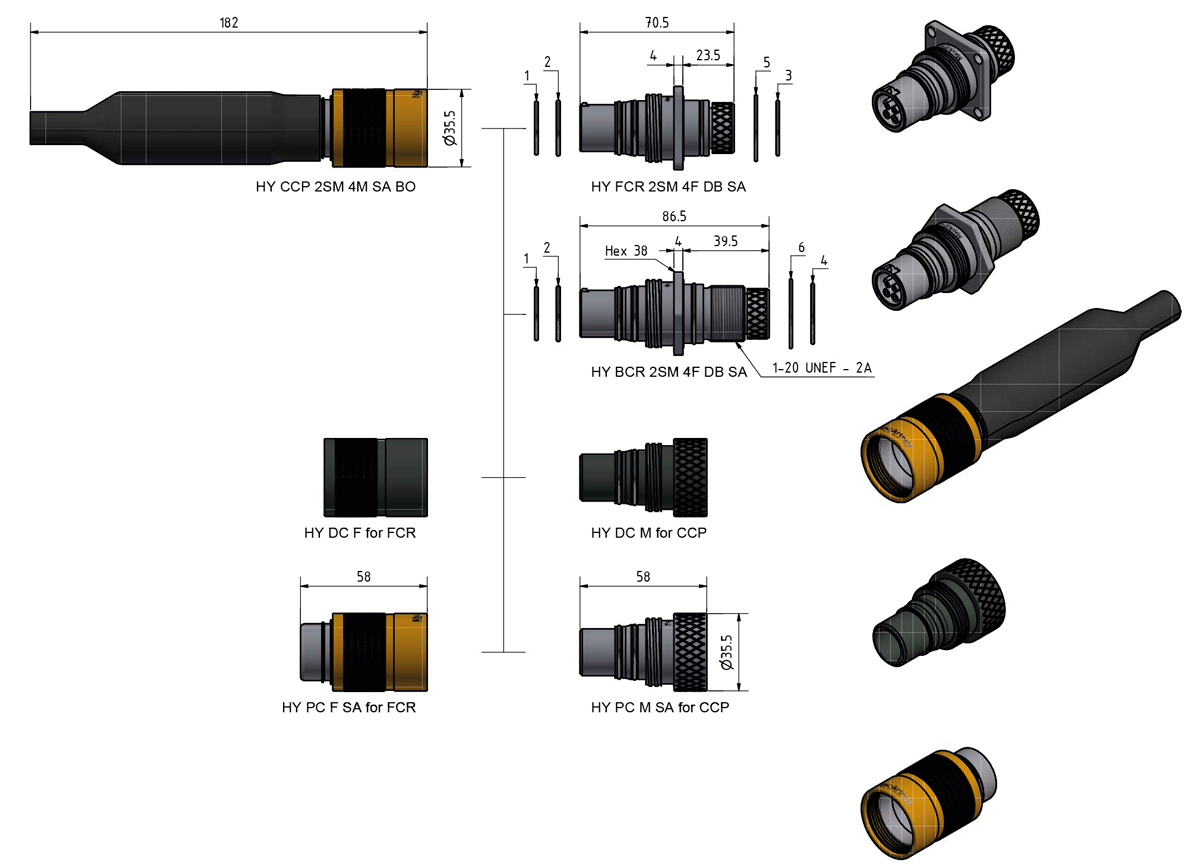

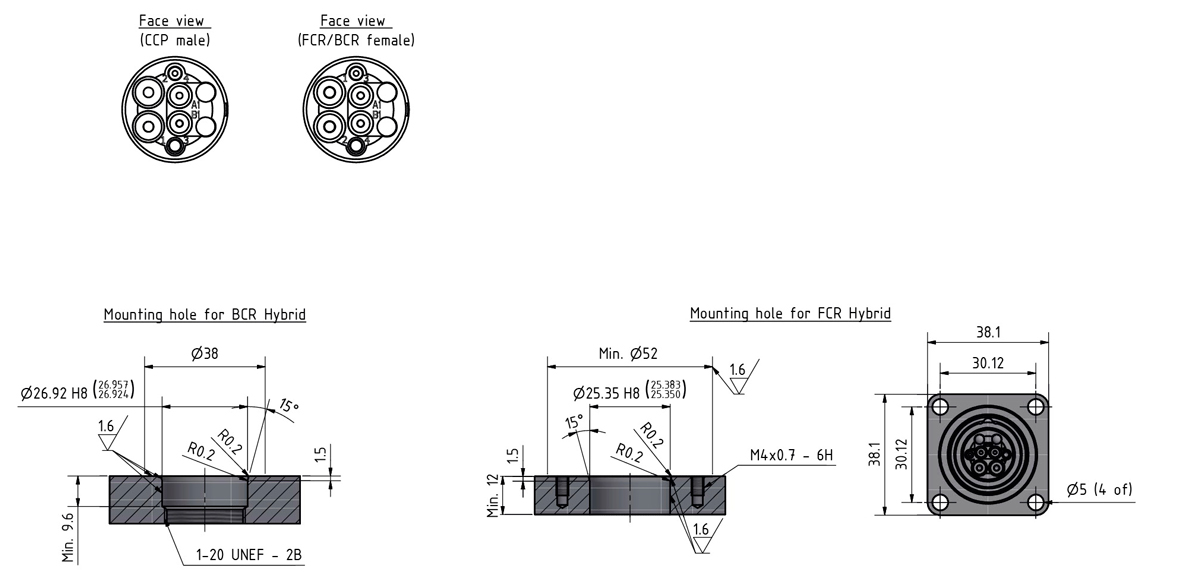

Face view
