914-X Series

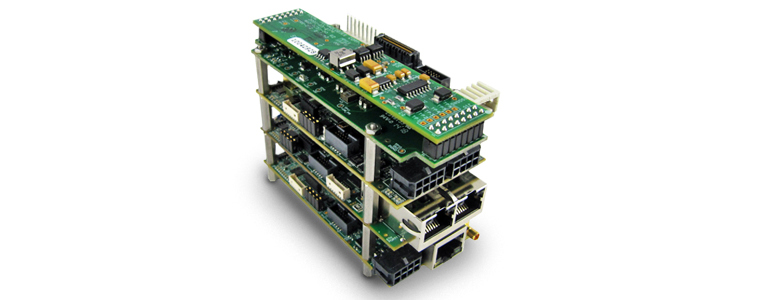

The model 914-X series represents a technical leap forward for the Moog Focal multiplexer product line. The 914-HDE is a single universal motherboard with 3 optical speed options, 20+ optical wavelength options, and an ever expanding array of expansion cards allow users to configure a modular multiplexing system. At its core is a multi-gigabit multiplexing fabric combining 3G/HD-SDI video, Ethernet and serial data. The multi-gigabit expansion interface permits up to 8 expansion cards to be added to the system without requiring multiple fibers or CWDM. For larger systems that do require more than a single 914-HDE motherboard can provide, optional CWDM transceivers and optical multiplexer cards assist multiple 914-X series systems to share the same fiber. All of this advanced technology is available in an incredibly small credit card sized form factor ideal for pressure bottles, and can also be configured as a pressure tolerant version. High speed ribbon cabling can be used to arrange complex systems in space-challenged enclosures.

Compatibility with Adaptable Interface Boards (AIB) allows this new multiplexing system to be backwards compatible to unique signal interfaces that often present challenges for system architects.

Typical Applications

• Remotely Operated Vehicles (ROVs)
• Explosive Ordinance Disposal (EOD) and pipe inspection robots
• Industrial sensors
• Ground vehicle turrets and Remote Weapon Stations (RWS)
• Naval, weather, and defense radar
• Many other high definition video applications in surveillance, defense and industrial
