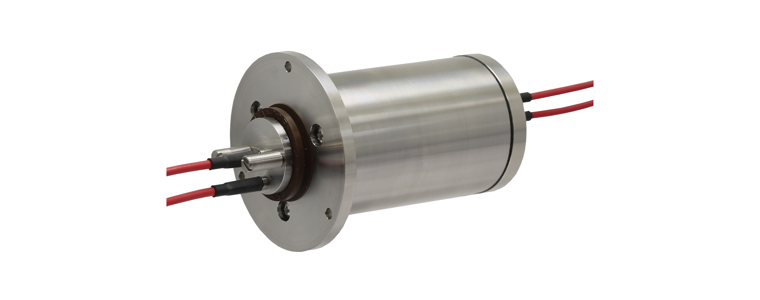

Fibre Optic Rotary Joint Model 319

The FO319 is a non-geared, singlemode, compact two-channel fiber optic rotary joint (FORJ). It is a passive and bidirectional device which can be used as a standalone device or easily integrated into a rotary assembly, enabling transfer of high data rate optical signals across a rotating interface.

Features

• Provides rotary coupling for two singlemode fiber links
• Passive bidirectional device
• Alternative drive coupling and mounting arrangements are available (consult factory for specification details)
• Stainless steel housing
• Ruggedized design
  • MIL-STD-167-1 ship vibration
  • MIL-STD-810 functional shock (40 g)
  • Operating temperature of –46°C to +71°C
• Junction box version available

Benefits

• Can easily be integrated with our standard electrical slip rings, including Hazloc slip rings
• Redundant channel for single channel applications
• Two independent bidirectional fiber paths
• Compact
• Long life
• No difference in the insertion loss or return loss of either channel

Typical Applications

• Remotely Operated Vehicle (ROV) and other marine equipment winches
• Industrial automation
• Video surveillance
• Ground, air and naval radar
• Electro-Optic (EO) pods
• Turrets and rotating pedestals
• High bandwidth cable reels
