CORMAC M - Modular stainless steel winch series
Request a quote for: CORMAC M - Modular stainless steel winch series
Get your non-binding quote today and see how we can help.

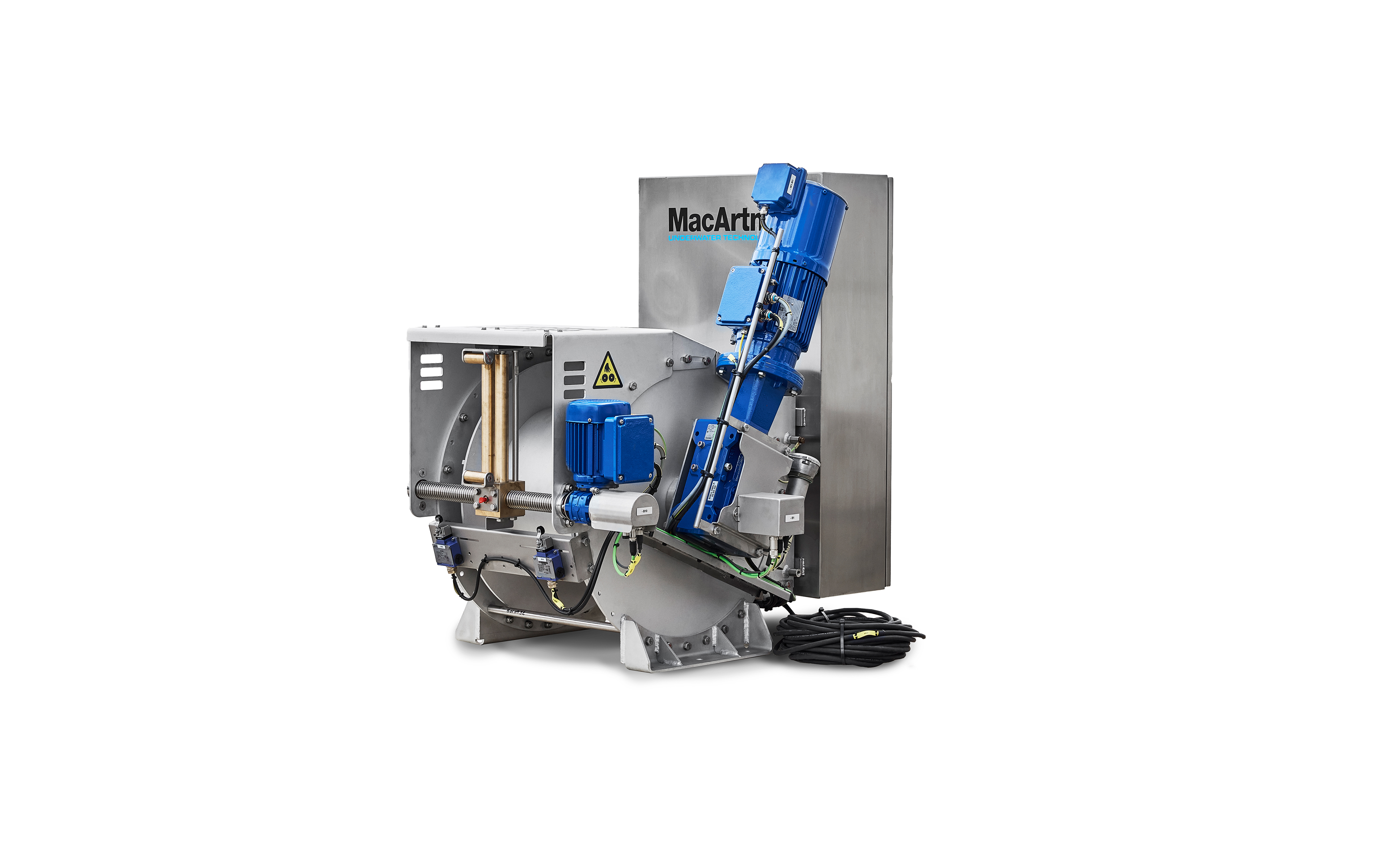

MacArtney CORMAC M modular winches are dependable and versatile systems that handle multiple marine applications and tasks. The winches feature a modular and compact design, allowing for flexible system installation on vessels with confined deck space. The CORMAC M series includes three standard winch models (CORMAC M1, M2, and M5).
Designed and engineered for optimal durability, CORMAC M winches require minimal maintenance and offer a broad range of specifications, including speed, pull, motor size, and cable capacity.
CORMAC M winches have several intelligent features that enable accurate and effective equipment handling. A soft-start function makes the winch easy to handle, improves equipment manoeuvrability, and protects the motor and gear.
The CORMAC M2 winch always includes an electrical slip ring and comes with a mechanically driven level wind. CORMAC M1 and M5 also come with an electrically driven level wind, allowing for significantly improved spooling performance while making it easy to change the diameter.
CORMAC M1 and M5 winches are prepared for a Focal model 180-based electric/electro-optical slip ring.
Features and benefits
- Modular and compact design using standardised components
- M2 and M5 structural components are made from glass-blasted stainless steel (AISI 316)
- M1 structural components are made from aluminium

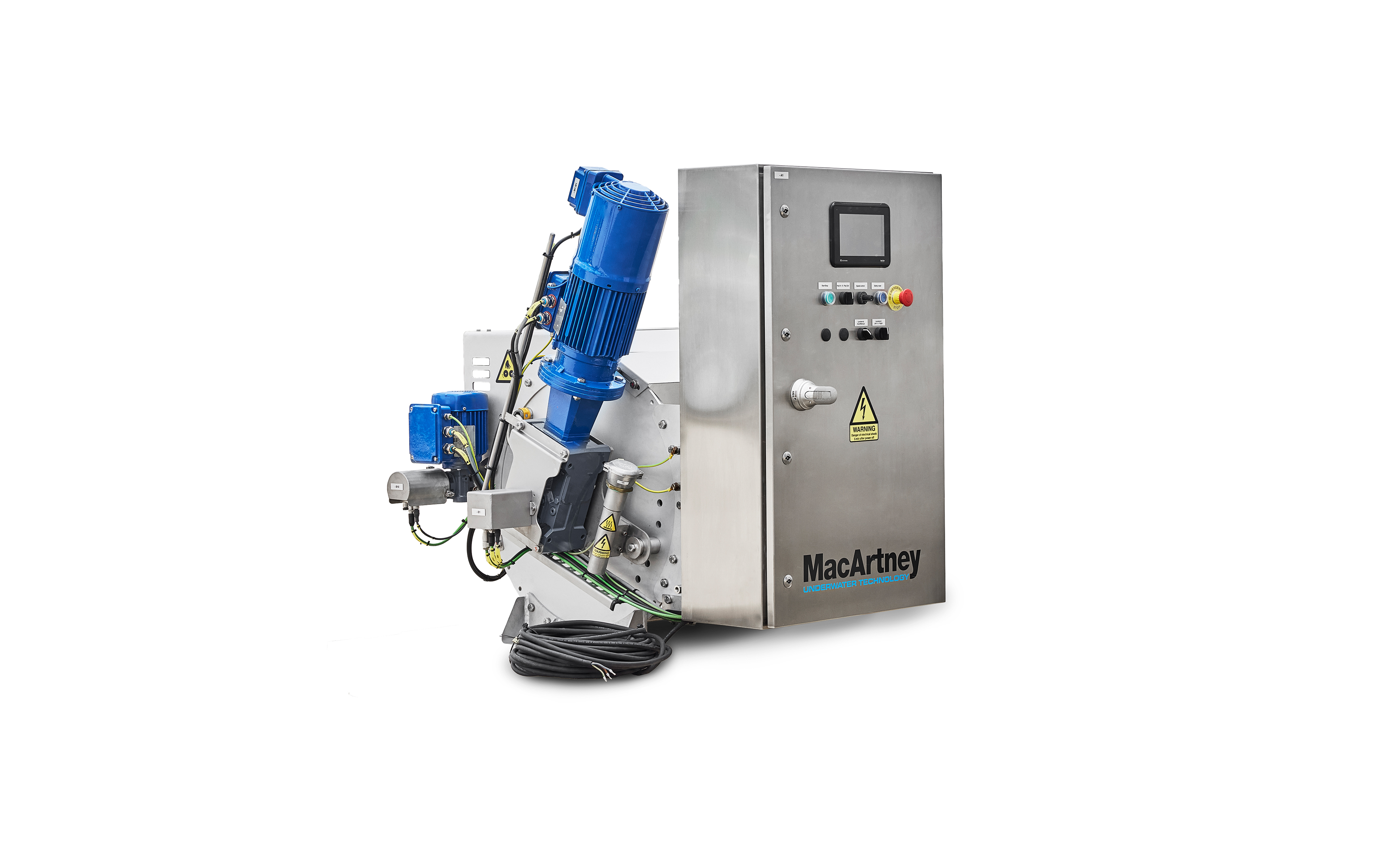

- Separate control panel
- HMI touch display with speed and depth info
- Mechanically driven level wind (M2)
- Electrically driven level wind (M1 and M5)
- Long and proven track record

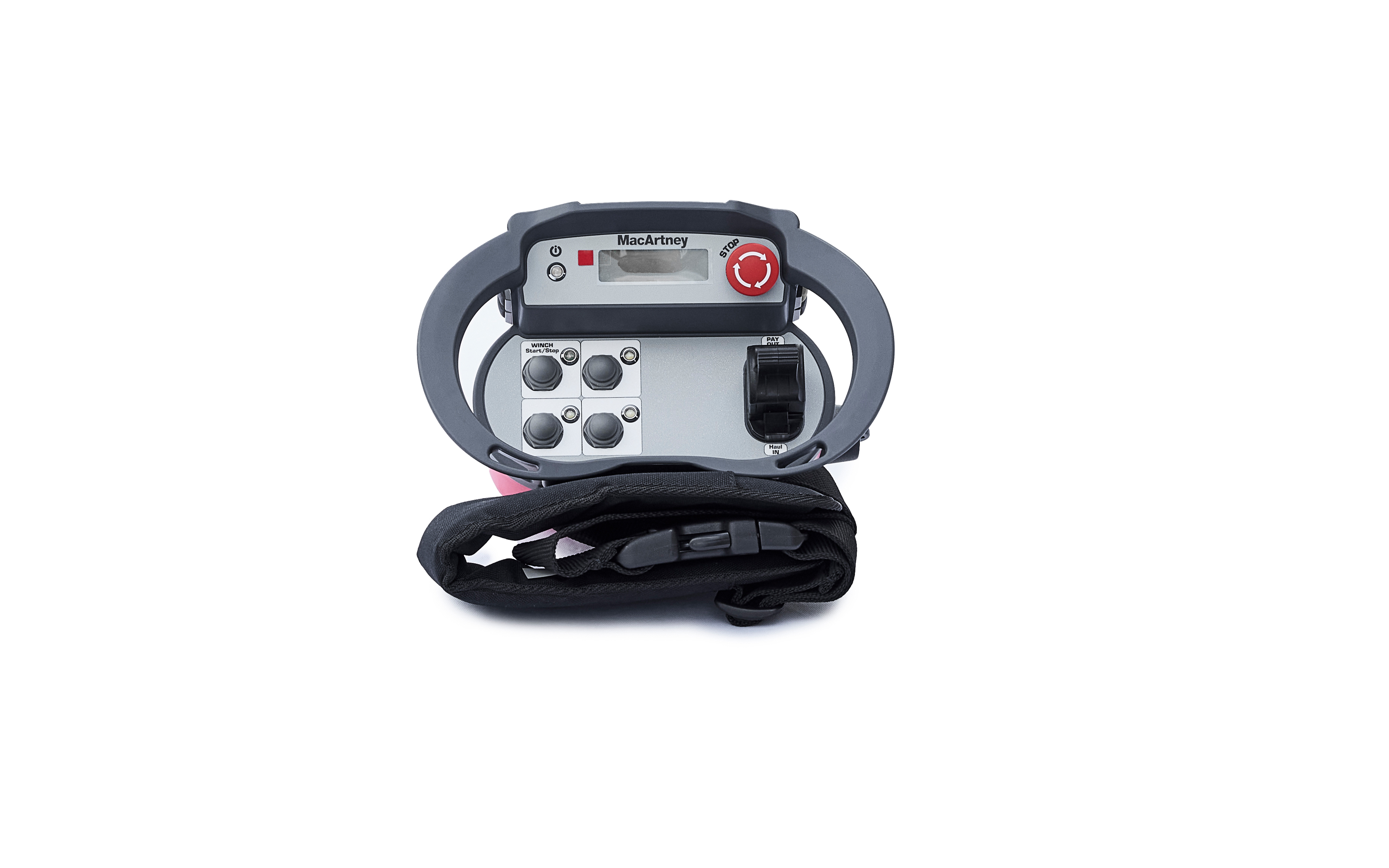

- Wireless remote control with joystick, display and emergency stop (M1 optional)
Applications
- Side scan sonar systems
- Subbottom profiler systems
- Light ROV systems
- Oceanographic profiling CTD systems
- Light towed equipment, platforms and ROTV systems
- Underwater camera systems
- General marine instrumentation
System options
- Service and maintenance programme
- Spare parts package
- A-frame, davit or deck crane
- Cable sheave
- Vibration-absorbing installation brackets
- Focal model 180-based electric/electro-optical slip ring (M1 and M5), Cavotec (M2)
- Tarpaulin cover
- PC control
- Other cable diameters are available upon request
