SubConn Metal Shell 1500 - 2, 3, 4, 5, 6 and 8 contacts and G2 2, 3 and 4 contacts

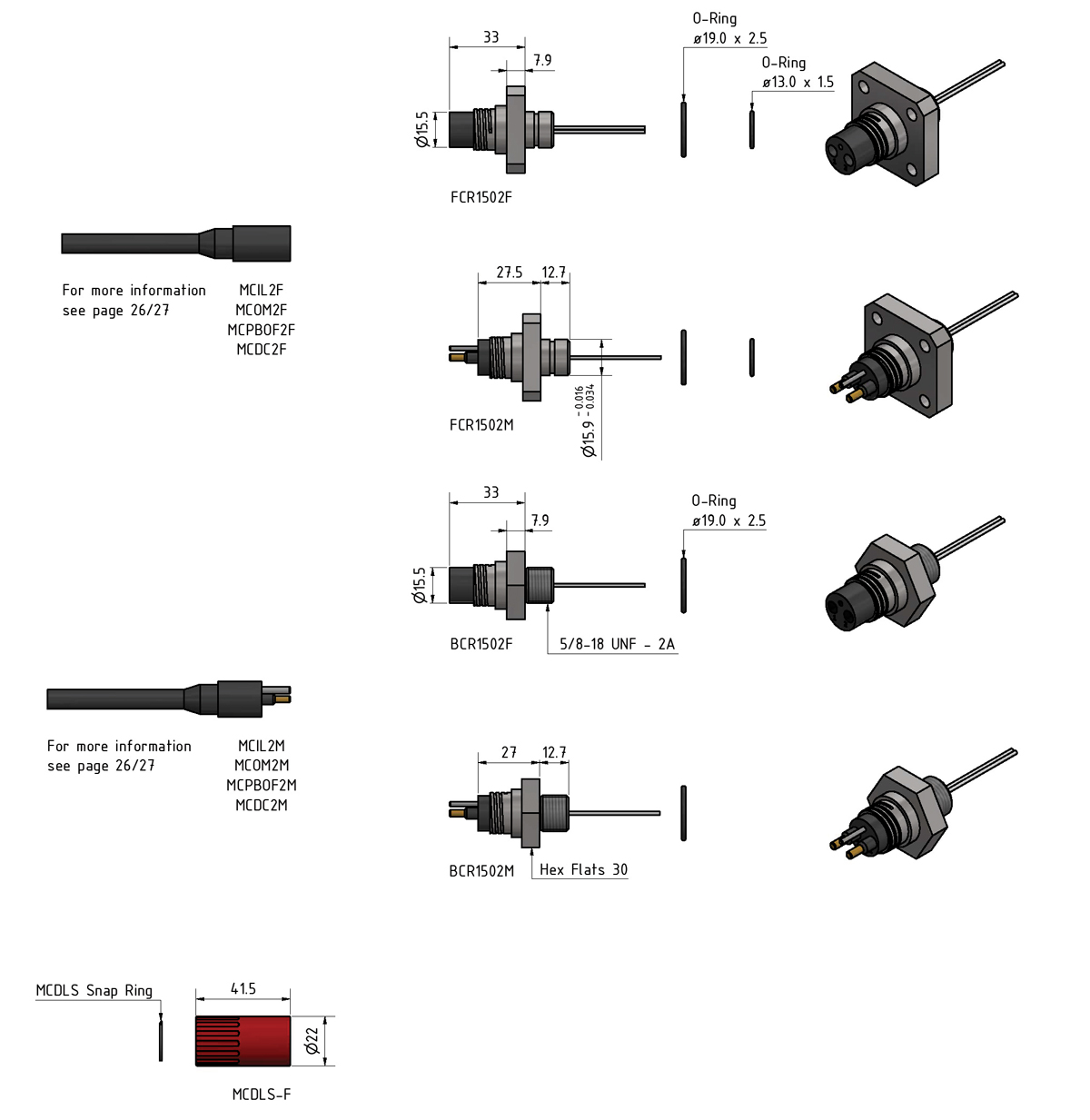

Drawing information
Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)
Connector specifications
- Voltage rating: 300 V DC/AC rms
- 2, 3 and 4 contacts current rating: 10 A per contact (max 20 A per connector)
- 5, 6 and 8 contacts current rating: 5 A per contact (max 20 A per connector)
- G2 2, 3 and 4 contacts current rating: 5 A per contact (max 20 A per connector)
- Insulation resistance: > 200 Mohm
- Contact resistance: < 0.01 ohm
- Wet matings: > 500 (open face rated)
- Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
- Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
- Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
- Qualified pressure tested: 800 bar, 11,600 psi
Material specifications
- Connector body: Chloroprene rubber
- Connector housing: Stainless steel AISI 316 (other materials on request)
- Contacts: Female sockets in gold plated brass UNS - C36000, Male pins in gold plated beryllium copper
- Location pin: Stainless steel AISI 303
- Locking sleeves: ABS or stainless steel
- Snap rings: Stainless steel AISI 302
- 2, 3 and 4 contact bulkhead leads (1 ft, 30 cm): 20 AWG, 0.52 mm2 coloured PTFE
- 5, 6 and 8 contact bulkhead leads (1 ft, 30 cm): 22 AWG, 0.33 mm2 coloured PTFE
- G2 2, 3 and 4 contact bulkhead leads (1 ft, 30 cm): 20 AWG, 0.52 mm2 coloured PTFE

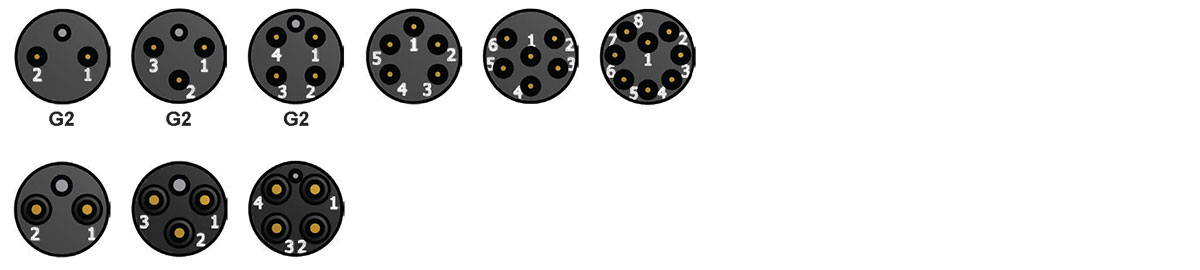

Face view (male)
