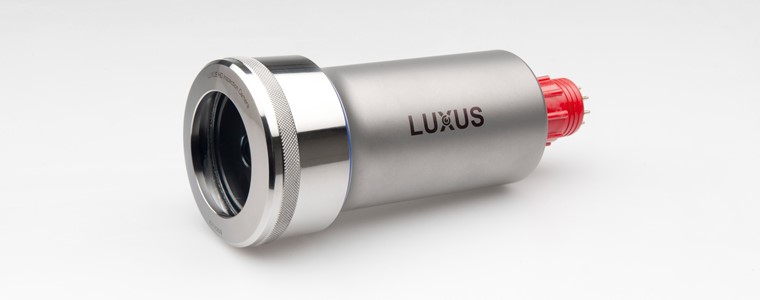

The LUXUS HD inspection camera is designed for use with ROV systems and is ideal for use in combination with the LUXUS power LED.

This high-definition camera is able to receive control func-tions as digital zoom, iris, white balance, etc. by means of the inbuilt OSD menu. The menu can be accessed via a hardwired connection.

The camera is equipped with a fixed focus lens and is instantly ready for use when powered on.

The LUXUS HD inspection camera consumes just 4.5 W and can handle a wide range of DC power inputs from 9.5 to 36 VDC. The camera comes with SubConn® or alternative customer specified connectors.

The camera housing is made from sandblasted titanium and has a depth rating of 4,000 metres.


Features and benefits

• High performance
• Full HD image quality
• Digital zoom function
• Numerous adjustable settings
• 4,000 m depth rating

Applications

• General underwater inspection
• ROV systems
• Trencher systems
• Crawler systems
• Tow and drop camera systems
• Benthic sledge systems
• Underwater observatory systems
• Diving applications
• Winch and deck monitoring

Options

• Alternative connectors
• Custom wiring
• LUXUS universal mounting bracket
